Eco-friendly paper shredder manufacturer
Perfect paper cutting technology.

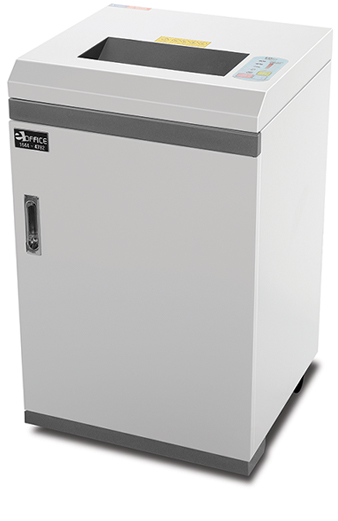

EO-5602B
Product Specification
2016 Eco-Friendly Certificate Acquisition
EO-5602B
Smart and powerful shredder
Fast and powerful shredding ability
And stylish design
Fast and powerful shredding ability
And stylish design
| Entry Width (mm) | 270 |
|---|---|
| Shredder Width (mm) | 3×30 |
| Product Size (mm) | 450×415×750 |
| Sheet Capacity (A4) | 26 ~ 28 |
| Motor (HP) | 1/2HP G/M |
| Bin Capacity (L) | 55 |
| Power Consumption (W) | 400 |
| Speed | 4.5 |
| Power (V.Hz) | 220V, 60Hz |
| Weight (kg) | 60 |
Product Technology
Eryun Office eco-friendly paper shredder’s
safety device and core technology
-
-
Document Auto SensorWhen the paper is fed, the photo sensor automatically senses the document and operates the shredder
-
-
Overload Auto ReverseIn the event of shredding beyond the specified sheet capacity, the shredder will auto reverse to prevent paper jam.
-
-
Cutter DurabilityEryun Office’s patented cutter guarantees semi-permanent durability and superior performance
-
-
Motor Temperature Detection FunctionIf a paper jam or an extended period of usage causes the motor to overheat, it will automatically shut-off and cool down.
-
-
Manual ReverseIt can be manually reversed during operation
-
-
Full Bin Alarm FunctionThe product will stop when the bin reaches its maximum capacity displaying the issue and alerting with a bell sound.
-
-
Metallic Spacer ApplicationImproved the durability of the product and reduced noise with the metallic spacer that aids feeding and discharging of paper
-
-
Loading FunctionThe product displays the amount of paper in the shredder.
-
-
Overload Automatic StopWhen too much paper is inserted in the shredder, it will automatically reverse and auto-stop.
-
-
Overcurrent Blockage FunctionWhen overcurrent occurs within the product due to internal or external problems, it will automatically cut off the power supply.
-
-
Idle Auto-Stop and Cleaning FunctionAfter motioning the start button it will clean for 1 minute and then auto-stop.
-
-
Standby Current Minimizing FunctionWhen the shredder is not in use or in standby mode, the power will comply with the government recommendation of less than 1W.
-
-
Automatic Auto-StopOnce the shredder stops operating, it will auto-stop within 4 seconds.
-
-
Manual Shredding ModeUse the manual shredding mode to shred OHP films or small papers that are hard to be detected.
-
-
Opened Door FunctionThe product automatically senses the problem and shut-off any operation.
-
-
Manual Stop ModeDuring operation, the product can be manually stopped with the STOP button.
Eryun Office Eco-friendly Paper Shredder’s
Distinctive and Special Features
-
-
Self-Diagnosis FunctionIt detects and determines operational status or malfunction on its own and notifies the user through a display window.
-
-
Conveyor SystemIt conveniently shreds in large quantities through the conveyor system of the feeder.
-
-
Shredding Time Display FunctionIt displays the operating time of the product (FND Shredder) and after a certain amount of time it shuts-off automatically to protect the product.
-
-
Load Display FunctionA separate loading part near the feeder facilitates the shredding of objects other than paper.
-
-
CD Shredder FunctionEquipped with a separate CD feeder.
(The CD can be shredded without a separate inserter.)
-
-
SAFE TOUCH FunctionShredder automatically shuts off if the user accidentally touches the paper feeder.
-
-
Economic Power Transmission MethodThe power for motor and the cutter is transmitted to the chain which reduces the noise. During an abnormal cutting operation the elastic is used to protect the motor. When the problem arises, it is more economical than the gear system since the entire chain is replaced.
Patented Cutter
 |
Patent Number 10-0758388 Paper Shredder Blade |
-
A molded and polished cutter with precise plane surface -
By polishing the cutter surface and the end diagonally it reduces the sound and vibration -
Easy to remove the residue generated by the paper shredder such as paper chips
Economical and Efficient Chain
- Economical and Efficient Chain
- Engineered to solve the problem of contraction and expansion depending on temperature changes
- Maintenance expenses are greatly reduced since only the chain is replaced, instead of the entire gear, when the components are worn out or after excessive operation
